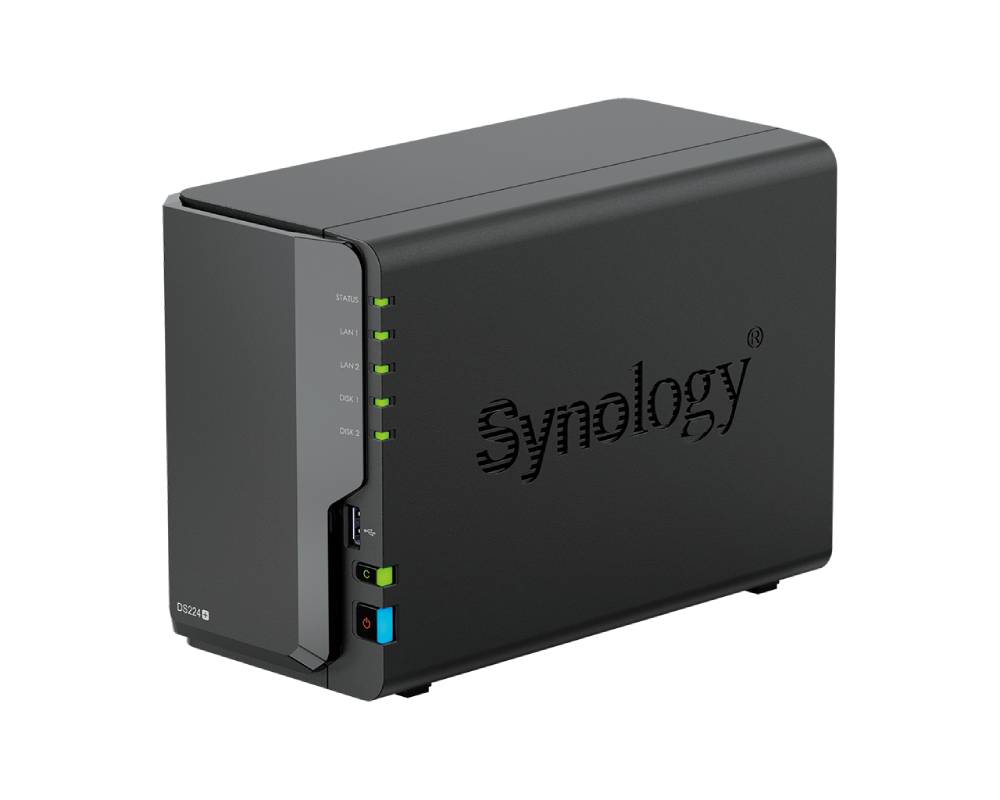

    Synology DiskStation DS224+

    Synology DiskStation DS224+

    DS224+ is faster at indexing files in Synology Drive and Synology Photos and more capable of running demanding web applications compared to previous-generation systems.

    Descriptions



    Store, share, and protect

    Manage all your documents, images, and other files, back up applications and devices, and protect your property with professional video surveillance.



    Hybrid work in the private cloud

    Store, sync, access, and share data from any device, wherever you are. Work together seamlessly across different platforms, accessing files through mobile apps, desktop clients, or a browser-based interface. Quickly and easily roll back files in case of unwanted deletion or modification thanks to smart versioning.



    Keep your photos organized

    Effortlessly back up and organize photos, videos, and other visual assets using intuitive management tools. Automatically organize your content into albums and create secure share links for stakeholders and teammates.



    Manage data with the power of the cloud

    Reduce your on-site storage footprint and benefit from data center network speeds with hybrid cloud technology. Synology Hybrid Share adds automatic cloud tiering, keeping the bulk of data in the cloud, while caching frequently accessed files cached locally on your DS224+ for fast access at LAN speeds.

    Synology Surveillance Station

    Protecting your business has never been easier with centralized management and support for over 8,300 IP camera models, remote monitoring, and playback. Synology’s video management system provides all the tools you need for live monitoring, investigation, management, and backup.



    Dual recording to the cloud

    C2 Backup for Surveillance allows you to keep access to surveillance footage if your recording server is disabled by recording to your local server as well as the C2 cloud. End-to-end encryption protects streams against unauthorized access while low-latency recording lets you review the crucial last few seconds before the recording server was lost.

    DiskStation DS224+ Specifications



    Hardware Specifications
    CPU
    CPU
    CPU Model Intel Celeron J4125
    CPU Quantity 1
    CPU Core 4
    CPU Architecture 64-bit
    CPU Frequency 2.0 (base) / 2.7 (turbo) GHz
    Hardware Encryption Engine
    Memory
    Memory
    System Memory 2 GB DDR4 non-ECC
    Total Memory Slots 1
    Maximum Memory Capacity 6 GB (2 GB + 4 GB)
    Notes
    • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
    • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
    Storage
    Storage
    Drive Bays 2
    Drive Type
    • 3.5" SATA HDD
    • 2.5" SATA SSD
    Hot Swappable Drive
    External Ports
    External Ports
    RJ-45 1GbE LAN Port 2
    USB 3.2 Gen 1 Port 2
    USB Copy
    Notes MTU value of 1GbE LAN port has a limit of 1500.
    Appearance
    Appearance
    Size (Height x Width x Depth) 165 mm x 108 mm x 232.2 mm
    Weight 1.30 kg
    Others
    Others
    System Fan 92 mm x 92 mm x 1 pcs
    Fan Speed Mode
    • Full-Speed Mode
    • Cool Mode
    • Quiet Mode
    Brightness Adjustable Front LED Indicators
    Power Recovery
    Noise Level 22 dB(A)
    Scheduled Power On / Off
    Wake on LAN / WAN
    Power Supply Unit / Adapter 60 watts
    AC Input Power Voltage 100V to 240V AC
    Power Frequency 50/60 Hz, Single Phase
    Power Consumption* 14.69 watts (Access)
    4.41 watts (HDD Hibernation)
    British Thermal Unit 50.09 BTU/hr (Access)
    15.04 BTU/hr (HDD Hibernation)
    Notes

    Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two GRAS 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

    Temperature
    Temperature
    Operating Temperature 0°C to 40°C (32°F to 104°F)
    Storage Temperature -20°C to 60°C (-5°F to 140°F)
    Operating humidity 8% to 80% RH
    Storage Humidity 5% to 95% RH
    Certification
    Certification

    FCC, CE, BSMI, VCCI, RCM, UKCA, CCC, KC, BIS

    Warranty
    Warranty
    2-year hardware warranty
    Notes
    • The warranty period starts from the purchase date as stated on your purchase receipt.
    • Extended Warranty Plus is only available in Europe and North America. Refer to the Extended Warranty Plus website for details on supported countries/regions.
    Environment
    Environment
    RoHS Compliant
    Packaging Content
    Packaging Content
    • Main Unit X 1
    • Accessory Pack X 1
    • AC Power Adapter X 1
    • AC Power Cord X 1
    • RJ-45 LAN Cable X 2
    • Quick Installation Guide X 1
    Optional Accessories
    Optional Accessories
    • DDR4 non-ECC SODIMM: D4NESO-2666-4G
    • Plus Series 3.5" SATA HDD: HAT3300 Series
    Notes All memory modules will operate at the maximum frequency specified by the CPU manufacturer.
