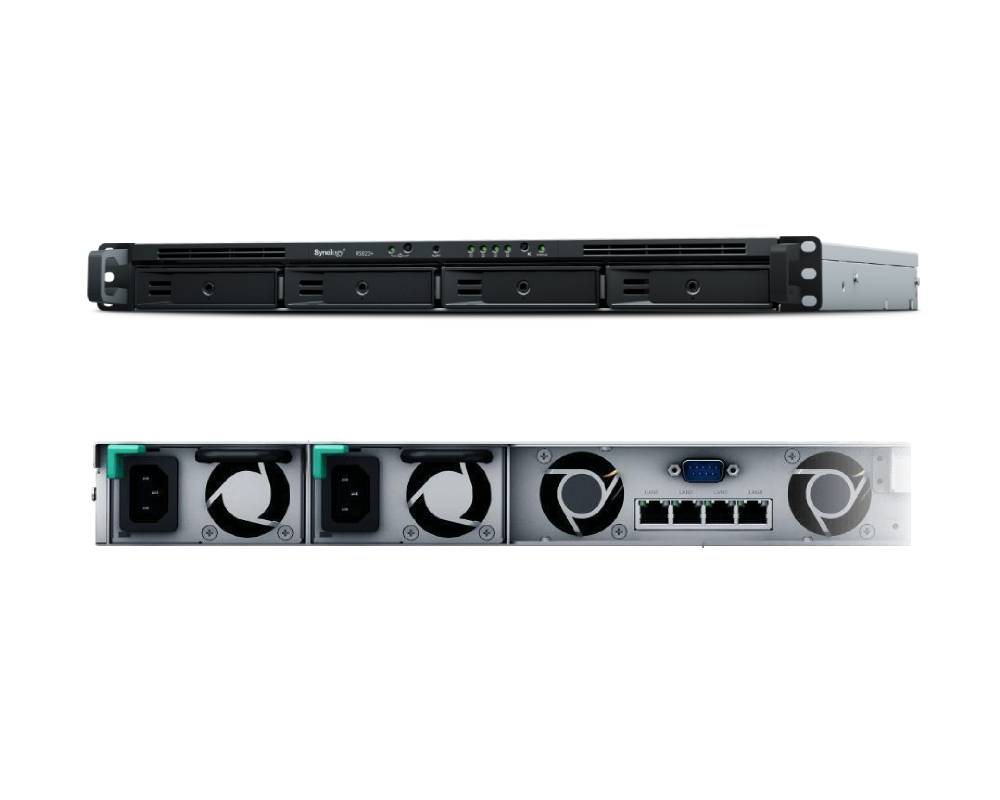

Synology RackStation RS822RP+/RS822+ Server
The compact 1U 4-bay c with its storage and connectivity expandability coupled with the powerful Synology DiskStation Manager (DSM) operating system is an ideal edge storage solution for branch offices and small and medium-sized businesses.
Descriptions
Versatile Storage for Any Purpose
The RS822RP comes out of the box with intuitive and comprehensive file management, media organization, and backup options, making it an ideal edge storage solution for medium and large studios or a comprehensive data management platform for retail and hospitality settings.
- Over 2,100 MB/s sequential read and 1,000 MB/s sequential write performance 1 enables fast file sharing, syncing, streaming, and backup for multiple users.
- Supports 4 3.5" or 2.5" SATA HDD/SSD,5 with the option to expand to 8 drives with a Synology RX418 expansion unit.
- Up to 32 GB DDR4 ECC memory for protection against potential crashes and inadvertent changes in data through automatic correction of data errors.
- Accommodate multiple streams or transfer tasks with four Gigabit RJ-45 ports, which can be bonded using Link Aggregation to provide automatic network failover and load balancing.
- Adjust your storage platform as more demanding needs arise with an optional 10GbE SFP/RJ-45 or 25GbE SFP28 add-in network card, an M.2 SSD adapter card, or a M.2 NVMe SSD & 10GbE combo adapter card via the PCIe 3.0 slot.
- Further bolstering dependability, the RS822RP is equipped with redundant power supply units.
Built for Data Protection and Integrity
Safeguard your critical data with the powerful storage management features of Synology DSM, built on the advanced Btrfs file system.
- Advanced snapshot technology provides schedulable and near-instantaneous data protection for shared folders and LUNs.
- File and folder-level data restoration enables recovery of specific files or folders.
- Flexible storage quota system helps admins manage available space by specifying storage limits for shared folders.
- File self-healing detects and recovers corrupted files using mirrored metadata and RAID configurations.
- Inline compression minimizes storage consumption and extends the life of drives by compressing data before it is written to the storage pool.
RS822RP+/RS822+ Specifications
|
Hardware Specifications
|
RS822RP+
|
RS822+
|
|
|---|---|---|---|
| CPU | CPU Model | AMD Ryzen V1500B | AMD Ryzen V1500B |
| CPU Quantity | 1 | 1 | |
| CPU Core | 4 | 4 | |
| CPU Architecture | 64-bit | 64-bit | |
| CPU Frequency | 2.2 GHz | 2.2 GHz | |
| Hardware Encryption Engine | |||
| Memory | System Memory | 2 GB DDR4 ECC SODIMM | 2 GB DDR4 ECC SODIMM |
| Memory Module Pre-installed | 2 GB (2 GB x 1) | 2 GB (2 GB x 1) | |
| Total Memory Slots | 2 | 2 | |
| Maximum Memory Capacity | 32 GB (16 GB x 2) | 32 GB (16 GB x 2) | |
| Notes |
|
||
| Storage | Drive Bays | 4 | 4 |
| Maximum Drive Bays with Expansion Unit | 8 (RX418 x 1) | 8 (RX418 x 1) | |
| Drive Type |
|
|
|
| Hot Swappable Drive* | |||
| External Ports | RJ-45 1GbE LAN Port | 4 | 4 |
| USB 3.2 Gen 1 Port | 2 | 2 | |
| Expansion Port | 1 | 1 | |
| Expansion Port Type | eSATA | eSATA | |
| Notes | MTU value of 1GbE LAN port has a limit of 1500. | ||
| PCIe | PCIe Expansion | 1 x Gen3 x8 slot (x4 link) | 1 x Gen3 x8 slot (x4 link) |
| Appearance | Form Factor (RU) | 1U | 1U |
| Size (Height x Width x Depth) | 44 mm x 480 mm x 518.6 mm | 44 mm x 480 mm x 492.6 mm | |
| Weight | 8.0 kg | 6.4 kg | |
| Rack Installation Support* | 4-post 19" rack (Synology Rail Kit - RKM114/RKS-02) | 4-post 19" rack (Synology Rail Kit - RKM114/RKS-02) | |
| Notes | The rail kit is sold separately | ||
| Others | System Fan | 40 mm x 40 mm x 2 pcs | 40 mm x 40 mm x 3 pcs |
| Fan Speed Mode |
|
|
|
| Power Recovery | |||
| Noise Level* | 38.8 dB(A) | 27.4 dB(A) | |
| Scheduled Power On / Off | |||
| Wake on LAN / WAN | |||
| Power Supply Unit / Adapter | 150 watts | 150 watts | |
| Redundant Power Supply | - | ||
| AC Input Power Voltage | 100 V to 240 V AC | 100 V to 240 V AC | |
| Power Frequency | 50/60 Hz, Single Phase | 50/60 Hz, Single Phase | |
| Power Consumption* | 47.69 watts (Access) 16.7 watts (HDD Hibernation) |
47.69 watts (Access) 16.7 watts (HDD Hibernation) |
|
| British Thermal Unit | 162.83 BTU/hr (Access) 57.02 BTU/hr (HDD Hibernation) |
162.83 BTU/hr (Access) 57.02 BTU/hr (HDD Hibernation) |
|
| Notes |
Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two GRAS 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8% |
||
| Temperature | Operating Temperature | 0°C to 35°C (32°F to 95°F) | 0°C to 35°C (32°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | -20°C to 60°C (-5°F to 140°F) | |
| Operating humidity | 8% to 80% RH | 8% to 80% RH | |
| Storage Humidity | 5% to 95% RH | 5% to 95% RH | |
| Certification |
FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, BIS, UL |
FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, UL |
|
| Warranty | 3-year hardware warranty, extendable to 5 years with Extended Warranty Plus | 3-year hardware warranty, extendable to 5 years with Extended Warranty Plus | |
| Notes |
|
||
| Environment | RoHS Compliant | RoHS Compliant | |
| Packaging Content |
|
|
|
| Optional Accessories |
|
|
|
| Notes |
|
||
