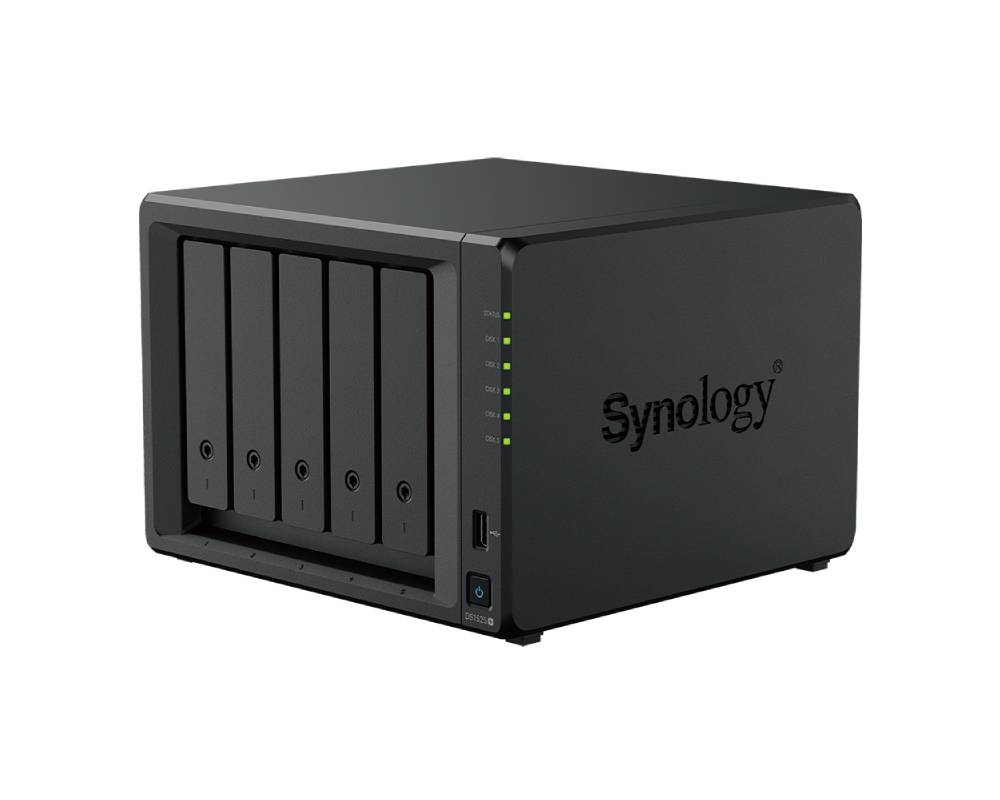

    Synology DiskStation DS1525+

    Synology DiskStation DS1525+

    The DS1525+ features built-in 2.5GbE networking with 10GbE option and supports both SATA SSDs and HDDs in 2.5"/3.5" internal bays, as well as M.2 NVMe drives via M.2 slots for use as cache.

    Descriptions



    Flexible All-Purpose Data Management Platform


    Synology DS1525 is a versatile 5-bay storage solution that scales with your needs, with support for storage expansion, 10GbE networking, and SSD caching. Built-in 2.5GbE networking provides excellent networking performance out of the box. Powered by Synology DiskStation Manager (DSM), this device is a flexible all-in-one solution for data sharing, synchronization, backup, and surveillance.


    Dependable Performance
    Up to 1,181/1,180 MB/s sequential read/write throughput supports stable data transfers.

    Fast Networking
    Built-in 2.5GbE ports for fast connectivity out of the box with support for 10GbE.

    Versatile Network Storage
    Leverage built-in file and photo management, data protection, virtualization, and surveillance solutions.

    Capacity Expansion
    Add 10 extra drive bays for up to 300TB of raw storage with two DX525 expansion unit.

    Extendable Product Support
    Backed by Synology's 3-year limited hardware warranty, extendable to 5 years in select markets.

    Versatile Storage for Any Purpose


    The DS1525 offers intuitive and comprehensive file management, media organization, and backup options right out of the box. Its capable performance, compact size, and versatile configuration options make it ideal for IT enthusiasts, creative professionals, and businesses of various sizes, from small firms to large enterprises as an edge device for branch offices or retail locations.

    • Up to 1,181 MB/s sequential read and 1,180 MB/s sequential write performance enables fast file sharing, syncing, streaming, and backup for multiple users.
    • Two 2.5GbE ports offer fast networking, with Link Aggregation supporting failover and load
      balancing capabilities.
    • Support for 10GbE networking via 10GbE RJ-45 Network Upgrade Module provides versatility and futureproofing.
    • Supports 5*2.5" SATA SSD and 3.5" SATA HDD. Synology hard drives and SSDs are designed to integrate seamlessly with Synology systems, delivering exceptional reliability.
    • Expandable to 15 drives for up to 300 TB of raw storage with two Synology DX525 expansion units.
    • Two built-in M.2 slots provide SSD caching capability without occupying drive bays.

    DiskStation DS1525+



    Hardware Specifications
    CPU
    CPU
    CPU Model AMD Ryzen V1500B
    CPU Quantity 1
    CPU Core 4
    CPU Architecture 64-bit
    CPU Frequency 2.2 GHz
    Hardware Encryption Engine
    Memory
    Memory
    System Memory 8 GB DDR4 ECC SODIMM
    Memory Module Pre-installed 8 GB (8 GB x 1)
    Total Memory Slots 2
    Maximum Memory Capacity 32 GB (16 GB x 2)
    Notes
    • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
    • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
    • For multi-module memory configurations, all modules must be identical and share the same model number.
    Storage
    Storage
    Drive Bays 5
    Maximum Drive Bays with Expansion Unit 15 (DX525 x 2)
    M.2 Drive Slots 2 (NVMe)
    Drive Type
    • 3.5" SATA HDD
    • 2.5" SATA SSD
    • M.2 2280 NVMe SSD
    Hot Swappable Drive
    Notes

    The hot swappable drive feature is not supported by M.2 SSD slots.

    External Ports
    External Ports
    RJ-45 2.5GbE LAN Port 2
    USB 3.2 Gen 1 Port 2
    Expansion Port 2
    Expansion Port Type USB Type-C
    PCIe
    PCIe
    PCIe Expansion 1 x Gen3 x2 network upgrade slot
    Appearance
    Appearance
    Size (Height x Width x Depth) 166 mm x 230 mm x 223 mm
    Weight 2.67 kg
    Others
    Others
    System Fan 92 mm x 92 mm x 2 pcs
    Fan Speed Mode
    • Full-Speed Mode
    • Cool Mode
    • Quiet Mode
    Brightness Adjustable Front LED Indicators
    Power Recovery
    Noise Level* 22.60 dB(A)
    Scheduled Power On / Off
    Wake on LAN / WAN
    Power Supply Unit / Adapter 120 watts
    AC Input Power Voltage 100V to 240V AC
    Power Frequency 50/60 Hz, Single Phase
    Power Consumption 44.56 watts (Access)
    13.63 watts (HDD Hibernation)
    British Thermal Unit 151.95 BTU/hr (Access)
    46.48 BTU/hr (HDD Hibernation)
    Notes

    Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two GRAS 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

    Temperature
    Temperature
    Operating Temperature 0°C to 40°C (32°F to 104°F)
    Storage Temperature -20°C to 60°C (-5°F to 140°F)
    Operating humidity 8% to 80% RH
    Storage Humidity 5% to 95% RH
    Certification
    Certification

    FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, BIS

    Warranty
    Warranty
    3-year hardware warranty
    Notes

    The warranty period starts from the purchase date as stated on your purchase receipt.

    Environment
    Environment
    RoHS Compliant
    Packaging Content
    Packaging Content
    • Main Unit X 1
    • Accessory Pack X 1
    • AC Power Adapter X 1
    • AC Power Cord X 1
    • RJ-45 LAN Cable X 2
    Optional Accessories
    Optional Accessories
    • DDR4 ECC SODIMM: D4ES03-8G/D4ES03-16G
    • Expansion Units: DX525
    • Enterprise Series 3.5" SATA HDD: HAT5300 Series
    • Plus Series 3.5" SATA HDD: HAT3300 Series
    • Enterprise Series 2.5" SATA SSD: SAT5200 Series
    • Enterprise Series M.2 2280 NVMe SSD: SNV3400 & SNV5400 Series
    • 10GbE Network Upgrade Module: E10G22-T1-Mini
    Notes For multi-module memory configurations, all modules must be identical and share the same model number.
