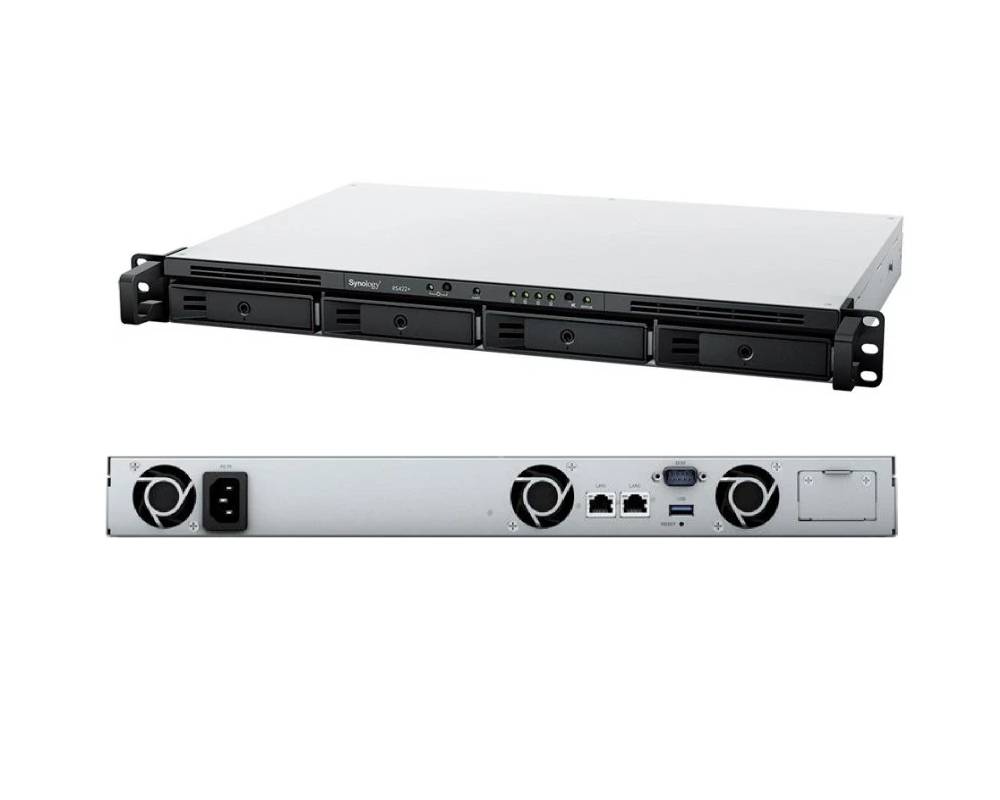

Synology RackStation® RS422+ Server
The 4-bay Synology RackStation RS422+ is an affordable all-in-one solution for small businesses and homelab owners looking to meet their daily data management, sharing, synchronization, and backup needs.
Descriptions
All-In-One Storage Platform for Home and Office
RS422 is designed to support small deployments requiring an out-ofthe-box data management solution.
- Over 570 MB/s sequential read and 530 MB/s sequential write performance support common file management, data backup, and surveillance applications.
- Two built-in Gigabit Ethernet ports can be bonded with Link Aggregation to provide redundant connectivity and load balancing, while fast 10GbE RJ-45 connectivity can be added with a plug-and-play network upgrade module.
- The compact chassis is designed to fit in a 2-post or wall mount rack, ensuring flexibility of deployment in space-limited environments.
Optimized for Data Protection and Integrity
Safeguard your data with the powerful storage management features of Synology DSM, built on the advanced Btrfs file system.
- Advanced snapshot technology provides schedulable and near-instantaneous data protection for shared folders and LUNs.
- File and folder-level data restoration enables recovery of specific files or folders.
- Configurable storage quotas simplify management of available space with the option to specify storage limits for shared folders.
- File self-healing detects and recovers corrupted files using mirrored metadata and RAID configurations.
- Inline compression minimizes storage consumption and extends the life of drives by compressing data before it is written to the storage pool.
File Sharing and Synchronization for Hybrid Teams
The compactness and ease of installation of the RS422 make it suitable for deployment as an edge server to provide convenient and effective file access, sharing, and synchronization across different locations.
- Wide network protocol support ensures seamless file sharing across Windows, Mac, and Linux platforms, while compatibility with Windows AD and LDAP enables easy integration into any existing network environment.
- Hybrid Share combines reliable on-premises storage and efficient syncing of shared folders in
the cloud to enable seamless cross-site synchronization and local file access at LAN speed. - Synology Drive is a private cloud file management solution that enables remote data access, synchronization, on-demand file restoration, and backup via handy desktop and mobile applications.
- Cloud Sync keeps your Dropbox, Google Drive, Microsoft OneDrive, Baidu, and Box storage in
sync with your Synology server. - Seamless file sharing capability is combined with a high level of security, including HTTPS support, a built-in firewall, and multiple IP and account intrusion auto-blocking mechanisms.
RS422+ Specifications
|
Hardware Specifications
|
||
|---|---|---|
|
CPU
|
||
|
CPU
|
CPU Model | AMD Ryzen R1600 |
| CPU Quantity | 1 | |
| CPU Core | 2 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 2.6 (base) / 3.1 (turbo) GHz | |
| Hardware Encryption Engine | ||
|
Memory
|
||
|
Memory
|
System Memory | 2 GB DDR4 ECC |
| Notes | Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. | |
|
Storage
|
||
|
Storage
|
Drive Bays | 4 |
| Drive Type |
|
|
| Hot Swappable Drive* | ||
|
External Ports
|
||
|
External Ports
|
RJ-45 1GbE LAN Port | 2 |
| USB 3.2 Gen 1 Port | 1 | |
| Notes | MTU value of 1GbE LAN port has a limit of 1500. | |
|
PCIe
|
||
|
PCIe
|
PCIe Expansion | 1 x Gen3 x2 network upgrade slot |
|
Appearance
|
||
|
Appearance
|
Form Factor (RU) | 1U |
| Size (Height x Width x Depth) | 44 mm x 478 mm x 327.5 mm | |
| Weight | 4.38 kg | |
| Rack Installation Support* |
|
|
| Notes | The rail kit is sold separately | |
|
Others
|
||
|
Others
|
System Fan | 40 mm x 40 mm x 3 pcs |
| Fan Speed Mode |
|
|
| Power Recovery | ||
| Noise Level* | 28.5 dB(A) | |
| Scheduled Power On / Off | ||
| Wake on LAN / WAN | ||
| Power Supply Unit / Adapter | 100 watts | |
| AC Input Power Voltage | 100V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption* | 37.93 watts (Access) 13.43 watts (HDD Hibernation) |
|
| British Thermal Unit | 129.42 BTU/hr (Access) 45.83 BTU/hr (HDD Hibernation) |
|
| Notes |
Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two GRAS 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8% |
|
|
Temperature
|
||
|
Temperature
|
Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Operating humidity | 8% to 80% RH | |
| Storage Humidity | 5% to 95% RH | |
|
Certification
|
||
|
Certification
|
FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, BIS |
|
|
Warranty
|
||
|
Warranty
|
3-year hardware warranty, extendable to 5 years with Extended Warranty Plus | |
| Notes |
|
|
|
Environment
|
||
|
Environment
|
RoHS Compliant | |
|
Packaging Content
|
||
|
Packaging Content
|
|
|
|
Optional Accessories
|
||
|
Optional Accessories
|
|
|
| Notes | Certain items may not be available in your location. | |
