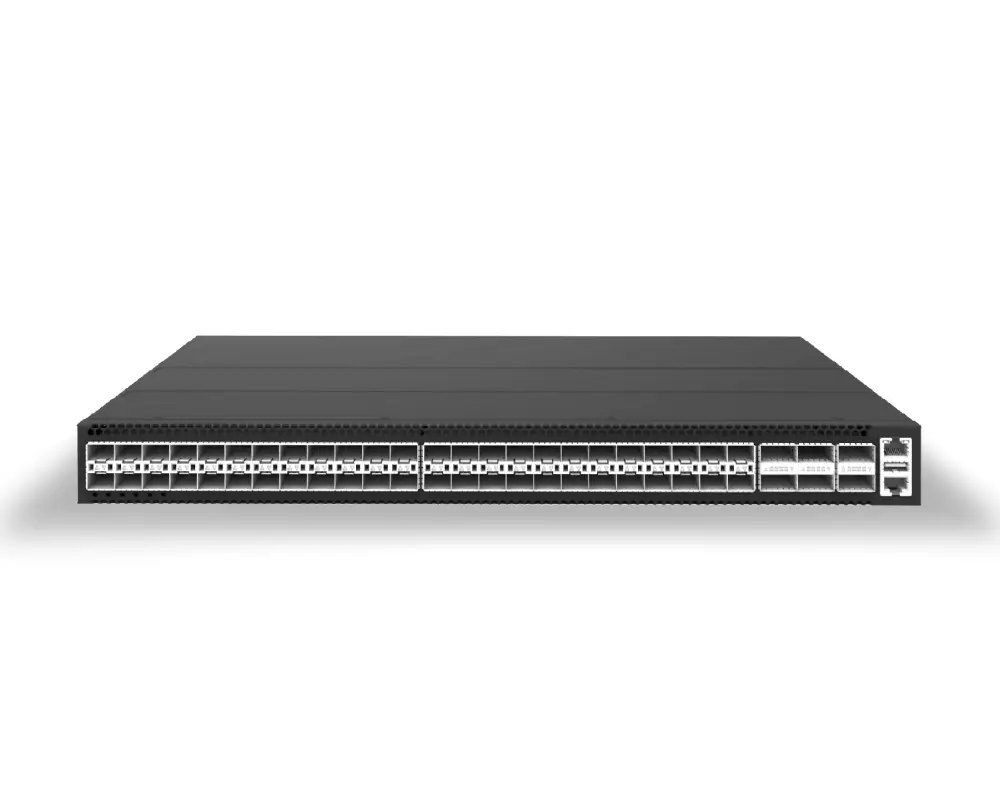

48 Port 25Gb SFP28 Switch with 6x100G Uplink for Campus & Data Center
The CX306P-48Y-M-H is a high-performance 2Tbps switch powered by the Marvell Falcon ASIC and Enterprise SONiC, ensuring stable operation at campus core and data center leaf layers.
Descriptions
The CX306P-48Y-M-H is a high-performance 2Tbps switch powered by the Marvell Falcon ASIC and Enterprise SONiC, ensuring stable operation at campus core and data center leaf layers. Designed for versatility, it supports modular PTP and GNSS options to meet time-sensitive network demands. With two optional Marvell Octeon10 CN103 DPUs, it extends beyond traditional switching by integrating routing and security functions to deliver a unified Switch + Router + Security platform, ideal for large campus networks and medium-sized service-provider edge deployments.
Features
1, 48×25G SFP28, 6×100G QSFP28 ports
2, Preloaded with Enterprise SONiC
3, Optional dual Marvell OCTEON DPUs for routing & security
4, Modular PTP and GNSS for time-sensitive networking （GM/TC/BC)
5, Ideal for large campus and medium service provider edge
6, Perfect for 5G timing, O-RAN fronthaul, and financial timestamping
Specifications
| Ports | 48x 25G SFP28 6x 100G QSFP28 |
Switch Chip | Marvell Falcon |
| Switching Capacity | 2.0 Tbps | MAC Address Entries | 32K |
| Forwarding Rate | 2.63 Bpps | IPv4 Prefix Routes | 504K |
| SDRAM | DDR4 16 GB | IPv6 Prefix Routes | 252K |
| SSD Memory | 256 GB | Packet Buffer | 24 MB |
| Hot-pluggable AC Power Supplies | 2 (1+1 Redundancy) | Max. Power Consumption | <430W |
| Hot-pluggable Fans | 4 (3+1 Redundancy) | Rack Units | 1 RU |
| Power Supply | 550W(AC, DC) | Voltage | 100~240V AC/ 26-72V DC |
| Dimensions (HxWxD) | 44x 440x 560mm | Weight | 11KG |
| Operating Temperature | 0 - 45℃ | Thermal Airflow | Front-to-Rear |
Optional DPUs (Main Recommended Marvell CN103)
|
Specifications
|
Main Model
|
Optional Model
|
|
CPU Architecture
(MIPS/X86/ARM)
|
ARM v9
|
Arm v8.2
|
|
CPU Model
|
Marvell CN10308
|
Marvell CN9670
|
|
CPU Core Count
|
8
|
24
|
|
CPU Main Frequency (Single Core)
|
2.5GHZ
|
1.8GHZ
|
|
Memory & Storage
|
||
|
Memory Capacity(Default)
|
16GB
|
32GB
|
|
Memory Specification
|
DDR5
|
DDR5
|
|
Memory Expandable Capacity
|
48GB
|
96GB
|
|
Flash Storage
|
64GB EMMC
|
64GB EMMC
|
|
SSD Storage(Optional)
|
NVME
|
NVME
|
|
Weight (kg)
|
TBD
|
1
|
|
Maximum Power Consumption
|
60W
|
100W
|

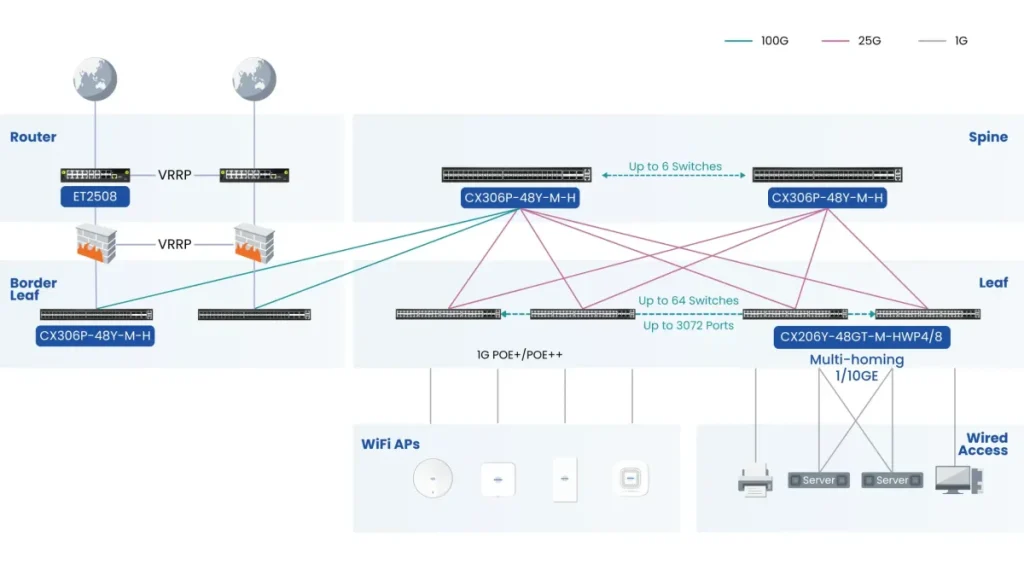

Connectivity Solutions
