Dell PowerEdge R750 server complete performance test

2022-10-26

More powerful performance and higher security

Help users face the new challenges of the digital future!

Today, with the release of Intel's latest processors

The PowerEdge R750 was also

Officially launched globally this month

How does it perform?

Professional evaluation agency StorageReview

Tested it for the first time

specific results

Let's have a sneak peek!

Dell PowerEdge R750 server complete performance test

Dell PowerEdge R750 server complete performance test

 The server configuration for this review
CPU:  2x 3rd Generation Intel® Xeon® 8380 Scalable Processors DRAM: 32x 32GB DDR4-3200MHz Memory Storage: 8x Intel P5510 3.84TB Gen4 Solid State Drive

ESXi version : 7.0u1

Operating System: CentOS 8.2

SQL Server performance

StorageReview's Microsoft SQL Server OLTP test protocol features the latest specification of the Transaction Processing Performance Council's Benchmark C (TPC-C), an online transaction processing benchmark used to simulate activity in complex application environments. TPC-C benchmarks are closer to measuring performance benefits and bottlenecks of storage infrastructure in database environments than synthetic performance benchmarks.

Each SQL Server VM is configured with two virtual disk vDisks: a 100GB volume for boot and a 500GB volume for database and log files. From a system resource perspective, they configured each virtual machine (VM) with 16 vCPUs, 64GB DRAM, and leveraged the LSI Logic SAS SCSI controller.

 SQL Server test configuration (per virtual machine)
◆ Windows Server 2012 R2◆ Storage: 600GB allocated, 500GB used◆ SQL Server 2014
◇ Database size: 1500
◇ Virtual client load: 15000
◇ Memory buffer: 48GB

◆ Test time: 3 hours

◇ 2.5 hours pretreatment
◇ 30 minutes sampling time

For SQL Server average latency, the Dell EMC PowerEdge R750 maintained 1ms latency across the entire 8VM.

Dell PowerEdge R750 server complete performance test

Sysbench MySQL performance

StorageReview's first local storage application benchmark includes a Percona MySQL OLTP database as measured by SysBench. The test also measures average TPS (transactions per second), average latency, and average 99th percentile latency.

Each Sysbench VM was configured with three virtual disks : one for boot (~92GB), one for the prebuilt database (~447GB), and a third for the database under test (270GB). From a system resource perspective, StorageReview configured each VM with 16 vCPUs, 60GB of DRAM, and leveraged the LSI Logic SAS SCSI controller.

 Sysbench MySQL test configuration (per VM)
◆ CentOS 6.3 64-bit ◆ Percona XtraDB 5.5.30-rel30.1
◇ Database table: 100
◇ Database size: 10,000,000
◇ Database threads: 32
◇ Memory buffer: 24GB

◆ Test time: 3 hours

◇ 2 hours preprocessing 32 threads
◇ 1 hour 32 threads

Via Sysbench OLTP, StorageReview recorded a total score of 29,200 TPS for 8 VMs, with a single VM ranging from 3631 to 3665 TPS. With 16VM, the total score for a single VM was 26,800 TPS, and the TPS for a single VM ranged from 1662 to 1690.

Dell PowerEdge R750 server complete performance test

In terms of average latency , 8VM provided 8.77ms (milliseconds) latency, and the latency of a single VM ranged from 8.73ms to 8.81ms. 16VMs have a combined latency of 19.1ms, and a single VM runs from 18.87ms to 19.24ms

Dell PowerEdge R750 server complete performance test

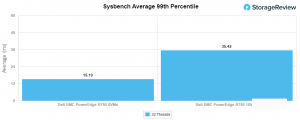

For worst-case latency (99th percentile), 8VM's latency totaled 15.2ms, while 16VM's totaled 35.4ms.

Dell PowerEdge R750 server complete performance test

VDBench workload analysis

All tests leverage the common VDBench workload generator and automate tests and capture results on large compute test clusters via a scripting engine.

 configuration data
◆ 4K random read: 100% read, 128 threads, 0-120% iorate ◆ 4K random write: 100% write, 64 threads, 0-120% iorate ◆ 64K sequential read: 100% read, 16 thread, 0-120% iorate

◆ 64K sequential writes: 100% write, 8 threads, 0-120% iorate

◆ Comprehensive database: SQL and Oracle

◆ VDI full clone and linked clone tracking

For 4K random reads , the PowerEdge R750 boot time was under 100µs (microseconds), held until 2.85 million IOPS, then peaked at 5.69 million IOPS, at which point the latency was 608µs.

Dell PowerEdge R750 server complete performance test



The PowerEdge R750's 4K random write was impressive , with a latency of only 15.1µs, and stayed below 100µs latency until about 3 million IOPS. The peak IOPS was 3.44 million, and the latency at this time was 986µs.

Dell PowerEdge R750 server complete performance test

In the read state, we saw the R750 peak at 644,000 IOPS or 40.3GB/s with a latency of 396µs.

Dell PowerEdge R750 server complete performance test

At 64K sequential writes , the PowerEdge R750 demonstrated a peak performance of 252,000 IOPS or 15.8GB/s at 939µs latency.

Dell PowerEdge R750 server complete performance test

Next is the SQL workload : including SQL, SQL 90-10 and SQL 80-20.

Starting with SQL, the PowerEdge R750 starts at 81µs and stays below 100µs latency until ~1 million IOPS. The peak IOPS was 1.796 million, and the latency at this time was 141µs.

Dell PowerEdge R750 server complete performance test

For SQL 90-10 , the server starts again with very low latency (74µs) and stays under 100µs until about 1.2 million IOPS. Then it hits a peak IOPS of 196.5 and a latency of 129µs.
Dell PowerEdge R750 server complete performance test
For SQL 80-20 , the PowerEdge R750 started with 71µs latency and peaked with 1.854 million IOPS and 136µs latency.

Dell PowerEdge R750 server complete performance test

Next is the Oracle workload : including Oracle, Oracle 90-10, and Oracle 80-20.

First for Oracle, the R750 continued to start with low latency (67µs) and peaked at 1.28 million IOPS with a latency of 128µs.

Dell PowerEdge R750 server complete performance test

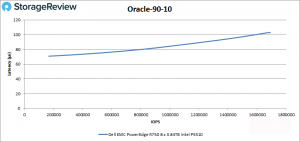

For Oracle 90-10 , the R750 ran with latency below 100µs most of the time. The peak IOPS is 1.69 million, and the latency at this time is only 103µs.

Dell PowerEdge R750 server complete performance test

This is followed by the Oracle 80-20 , where we see the R750 again run with sub-100µs latency most of the time. Peak IOPS was 1.64 million and latency was only 106µs.

Dell PowerEdge R750 server complete performance test

Next, StorageReview switched to VDI clone testing, i.e. full clones and linked clones .

For VDI full clone (FC) boot, the PowerEdge R750 peaked at 1.466 million IOPS with a latency of just 172µs, then started to drop.

Dell PowerEdge R750 server complete performance test

On the VDI FC initial login , PowerEdge stayed below 100µs latency for about three-quarters of the time, then peaked at 763,000 IOPS with 189µs latency.

Dell PowerEdge R750 server complete performance test

For VDI FC Monday Login (first login every week), the R750 stayed below 100µs latency until 318,000 IOPS, then peaked at 653µs latency at 654,000 IOPS.

Dell PowerEdge R750 server complete performance test

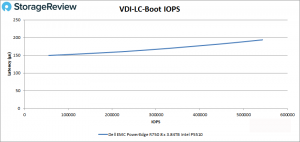

Next up was the VDI Linked Clones (LC) test , which showed a peak performance of 543,000 IOPS and a latency of 194µs.

Dell PowerEdge R750 server complete performance test

VDI LC initial login , the R750 booted with only 86µs latency, then peaked at 344k IOPS and 136µs latency.

Dell PowerEdge R750 server complete performance test

Finally, with the R750 at VDI LC Monday login , we saw a peak of 478,000 IOPS and a latency of 189µs.

Dell PowerEdge R750 server complete performance test

in conclusion
The Dell EMC PowerEdge R750 takes full advantage of the latest 3rd Gen Intel® Xeon® Scalable processors, including support for PCIe Gen4 with twice the throughput performance of Gen3. The R750 also brings hardware NVMe RAID to market with a new PERC11 card (PowerEdge RAID Controller 11), which was quite a challenge before. We configured the server very compactly, but it still maintained a nice cooling layout without excessive airflow .

Performance-wise, we tested the PowerEdge R750 with application workload analysis and VDBench workloads. In terms of average latency for SQL Server, the server was able to maintain 1ms latency across 8 VMs. For Sysbench, the TPS for the 8 VM settings is 29174, with an average latency of 8.77ms and a worst-case latency of 15.2ms. We saw impressive performance with 8 VMs, one of the highest 8VM performances we've recorded .

With 16 VMs, we see a TPS of 26838, an average latency of 19.1ms, and a worst-case latency of 35.4ms.

The R750 shows very strong low latency performance in VDBench . Highlights include 4K reads at 5.7 million IOPS , 4K writes at 3.4 million IOPS, 64K reads at 40.3GB/s, and 64K writes at 15.8GB/s.

In the SQL workload , we saw peaks of 1.8 million IOPS, 1.96 million IOPS for SQL 90-10, and 1.85 million IOPS for SQL 80-20.

In the Oracle workload , we saw peaks of 1.97 million IOPS, 1.69 million IOPS for the Oracle 90-10, and 1.6 million IOPS for the Oracle 80-20.

In the VDI full clone , we saw 1.47 million IOPS launches, 763,000 IOPS initial logins, and 654,000 IOPS Monday logins. In the VDI linked clone we see 543k IOPS at boot, 344k IOPS at initial login and 478k IOPS at Monday login.

The PowerEdge R750's performance exceeded our expectations . We're excited to see a new generation of Intel-based servers finally arrive, showing the world what it's capable of. Not only is the R750 a powerhouse, but it's also had a great redesign, especially around cooling and NVMe RAID. There are also new BOSS drives and the legendary iDRAC management tool.
