Thinksystem SR650 Lenovo 2U Rack Server
The ThinkSystem SR650 is Lenovo's most powerful, versatile 2U2P rack server design. With up to 24 drive bays, it offers industry-leading reliability and no-compromise performance to tackle business-critical workloads for medium to large enterprises, government or education.
Top-performing server for data centers needing scalability
- Large memory capacity
- Vast storage capacity
- Versatile storage configurations/AnyBay
- Flexible I/O & networking configurations
- Enterprise-class RAS features
- XClarity systems management
Features
Future defined data center
Lenovo delivers cost-effective, reliable, and scalable solutions by combining industry-leading technology and the world’s best software-defined offerings with Lenovo ThinkShield, XClarity, and TruScale Infrastructure Services to manage the life cycle of your data center needs. ThinkSystem SR650 provides support for data analytics, hybrid cloud, hyperconverged infrastructure, video surveillance, high performance computing and much more.
Workload-optimized support
Intel® Optane™ DC Persistent Memory delivers a new, flexible tier of memory designed specifically for data center workloads that offer an unprecedented combination of high capacity, affordability, and persistence. This technology will have a significant impact on real-world data center operations: reduction of restart times from minutes down to seconds, 1.2x virtual machine density, dramatically improved data replication with 14x lower latency and 14x higher IOPS, and greater security for persistent data built into hardware.

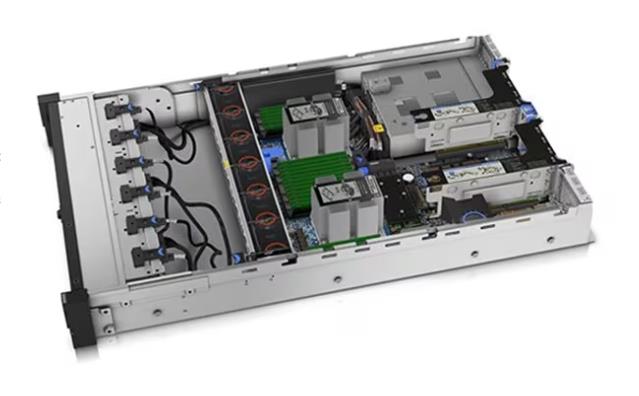

Flexible storage
Lenovo AnyBay design features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, or U.2 NVMe PCIe drives. Freedom to configure some of the bays with PCIe SSDs and still use the remaining bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed.
Tech Specs
| ATTRIBUTE |
SPECIFICATION |
|---|---|
| Form Factor/Height |
2U rack server
|
| Processors |
Up to 2 second-generation Intel® Xeon® Platinum processor, up to 205W
|
| Memory |
Up to 7.5TB in 24x DIMM slots using 128GB DIMMs and Intel® Optane™ DC Persistent Memory; 2666MHz / 2933MHz TruDDR4 |
| Expansion Slots |
Up to 7x PCIe 3.0 via multiple riser options including 1x dedicated PCIe slot for RAID adapter
|
| Drive Bays |
Up to 14x 3.5” or up to 24. 2.5” hot-swap bays (up to 12 AnyBay bays or up to 24 NVMe bays); up to 2x M.2 boot drives (RAID 1) |
| HBA/RAID Support |
HW RAID (up to 24 ports) with flash cache; up to 16-port HBAs |
| Security and Availability Features |
TPM 1.2/2.0; PFA; hot-swap/redundant drives, fans, and PSUs; 45°C continuous operation; light path diagnostic LEDs; front-access diagnostics via dedicated USB port |
| Network Interface |
2/4-port 1GbE LOM; 2/4-port 10GbE LOM (Base-T or SFP+); 1x dedicated 1GbE management port |
| Power (Energy Star 2.0 compliant) |
2x hot swap/redundant: 550W/750W/1100W/1600W 80 PLUS Platinum; or 750W 80 PLUS Titanium; or -48V DC 80 PLUS Platinum |
| Systems Management |
XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management |
| Operating Systems Supported |
Microsoft, Red Hat, SUSE, VMware.
|
| Limited Warranty |
1- and 3-year customer replaceable unit and onsite service, next business day 9x5, optional service upgrades |
