Rear view of the system of Dell PowerEdge R860

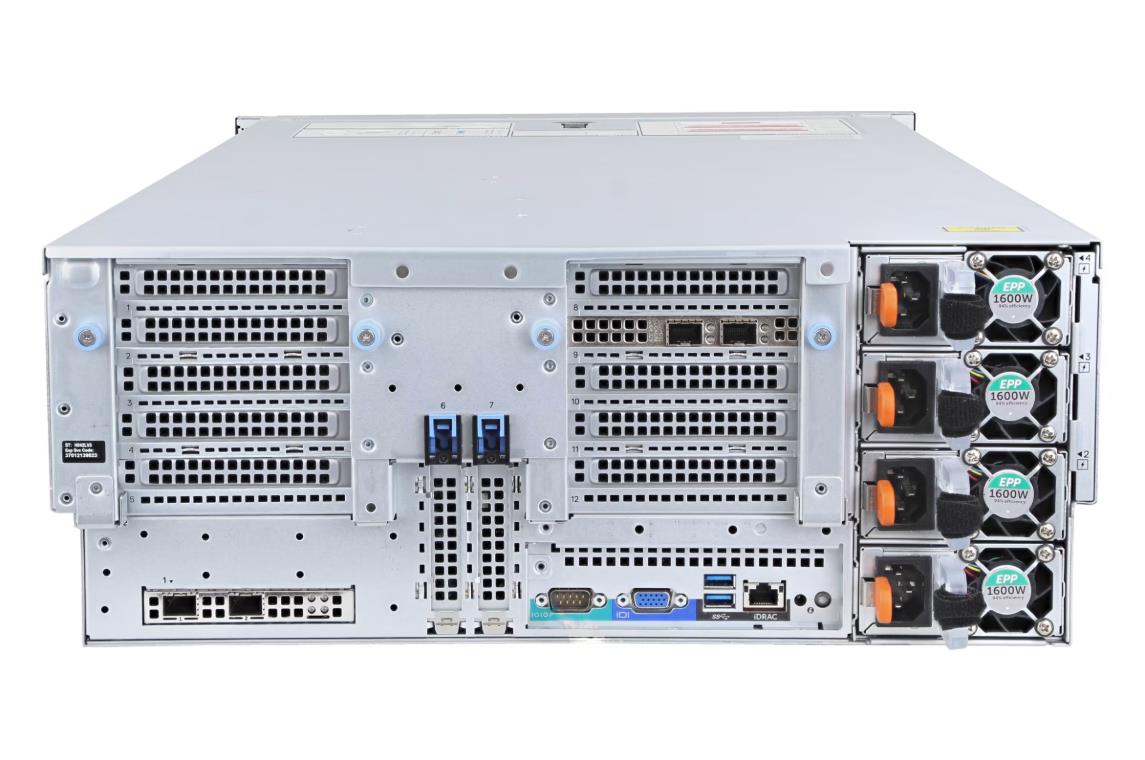

We will provide you with the Rear view of the system of Dell PowerEdge R860 in different inches, in addition，we detail the ports, panels and jacks in table form. After reading this article，you will have a whole hearted understanding of the Dell EMC PowerEdge R860. Figure 1. Rear view of the system Table 1. Rear view of the system Item Ports, panels, or slots Icon Description PCIe expansion card riser 1 (slot 1 and slot 2) N/A The expansion card riser enables you to connect PCI Express expansion cards. 1 BOSS-N1 module N/A BOSS-N1 module for internal system boot. 2 PCIe expansion card riser 2 (slot 3 and slot 6) N/A The expansion card riser enables you to connect PCI Express expansion cards. 3 PCIe expansion card riser 3 (slot 4 and slot 5) N/A The expansion card riser enables you to connect PCI Express expansion cards.   4 VGA port Enables you to connect a display device to the system. 5 PCIe expansion card riser 4 (slot 7 and slot 8) N/A The OCP NIC card supports OCP 3.0. The NIC ports are integrated on the OCP card which is connected to the system board. 6 Power supply unit (PSU2)...
