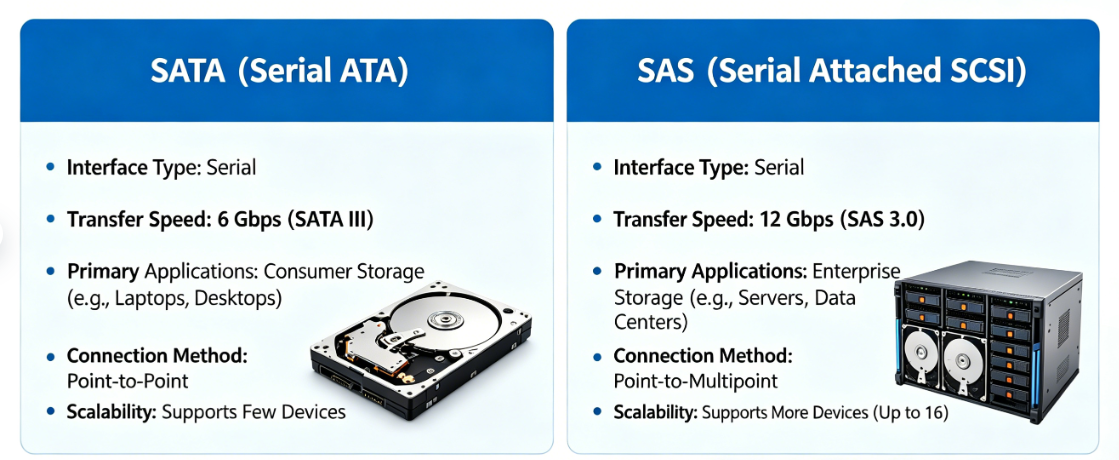

What is the difference between SATA and SAS?

SATA (Serial Advanced Technology Attachment) and SAS (Serial Attached SCSI) are both interfaces used for connecting storage devices, but they serve different purposes and have distinct characteristics. Here are the key differences:

1. Purpose and Use Case

• SATA: Primarily designed for consumer-grade applications, such as personal computers and consumer electronics. It is commonly used for hard drives and solid-state drives in desktops and laptops.
• SAS: Designed for enterprise environments, SAS is used in servers and storage arrays that require high performance, reliability, and scalability. It is suitable for applications demanding high availability and data integrity, such as databases and virtualization.

2. Performance

• SATA: Typically offers lower data transfer rates, with standard speeds of 6 Gbps (SATA III). The focus is on cost-effectiveness rather than performance.
• SAS: Provides higher data transfer rates, with speeds up to 12 Gbps and even 24 Gbps in newer versions (SAS-4). It is optimized for higher throughput and lower latency.

3. Data Integrity and Reliability

• SATA: Generally lacks advanced error correction and redundancy features, making it less reliable for critical data storage.
• SAS: Incorporates features like error checking, dual porting (for redundancy), and support for more robust RAID configurations, enhancing data integrity and reliability.

4. Device Support

• SATA: Supports a limited number of devices per controller, typically up to 1 device per port.
• SAS: Can support a much larger number of devices (up to 128 devices) due to its expandability and ability to connect multiple devices through expanders.

5. Cost

• SATA: Generally cheaper due to its consumer focus and lower performance capabilities.
• SAS: More expensive, reflecting its advanced features, performance, and suitability for enterprise applications.

6. Compatibility

• SATA: SATA drives can connect to SATA interfaces, but they cannot connect to SAS interfaces.
• SAS: SAS controllers can connect both SAS and SATA drives, allowing for greater flexibility in storage configurations.

Summary

In summary, SATA is more suited for consumer applications where cost is a primary concern, while SAS is designed for enterprise environments where performance, reliability, and scalability are critical.
