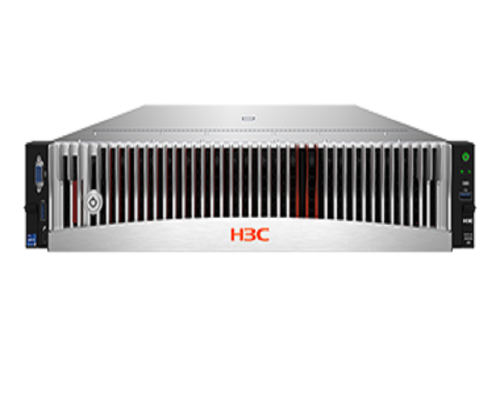

H3C UniServer R4900 G5 Server
H3C UniServer R4900 G5 server is a H3C self-developed mainstream 2U rack server.
Features
Industrial-leading performance improves data center productivity
Support up to 80 cores and 8TB memory
16 x Intel ® Optane™ DC Persistent Memory Module(PMem 200)
AI-Optimized GPU
Favorable Scalability and flexibility
Support up to 29 Drives
24 x NVME+M.2+MicroSD
2 OCP3.0 slots
Full life-cycle management to reduce TCO
Industrial-standard OOB system-HDM
FIST -batch job execution
Two-factor authorization
R4900 G5 is optimized for scenarios:
Virtualization — Support multiple types of core workloads on a single server to simplify Infra-investment.
Big Data — Manage exponential growth of structured, unstructured, and semi-structured data.
Storage intensive application — dismiss the performance bottleneck.
Data warehouse/analysis — Query data on demand to help service decision.
Customer relationship management (CRM) — Help you to gain comprehensive insights into business data to improve customer satisfaction and loyalty.
Enterprise resource planning (ERP) — Trust the R4900 G5 to help you manage services in real time.
(Virtual Desktop Infrastructure)VDI —Deploy remote desktop services to provide your employees with the working flexibility anytime, anywhere.
| CPU |
2 x 3rd generation Intel® Xeon® Ice Lake SP series (each processor up to 40 cores and maximum 270W power consumption) |
| Chipset | Intel® C621A |
| Memory |
32 x DDR4 DIMM slots , maximum 8.0 TB Up to 3200 MT/s data transfer rate RDIMM Up to 16 Intel ® Optane™ DC Persistent Memory Module PMem 200 series ( Barlow Pass) |
| Storage controller |
Embedded RAID controller Standard PCIe HBA controller or storage controller, depending on model |
| FBWC |
8 GB DDR4 cache, depending on model, support supercapacitor protection |
| Storage |
Up to front 12LFF bays, Rear 4LFF/4SFF bays Up to front 25SFF bays, Rear 4LFF/4SFF bays Front/Rear SAS/SATA HDD/SSD NVMe Drives, maximum 24 x U.2 NVMe Drives SATA or PCIe M.2 SSDs, 2 x SD card kit , depending on model |
| Network |
1 x onboard 1 Gbps management network port 2 x OCP 3.0（x16）slots for 4 x 1GE or 2 x 10GE or 2 x 25GE NICs PCIe Standard slots for 1/10/25/40/100/200GE/IB Ethernet adapter |
| PCIe slots | 14 x PCIe 4.0 standard slots, depending on model |
| Ports |
VGA ports (Front and Rear) and serial port (RJ-45) 6 x USB 3.0 ports (2 front, 2 rear, 2 internal) 1 dedicated management Type-C port |
| GPU | 14 x single-slot wide or 4 x double-slot wide GPU modules, depending on model |
| Optical drive | External optical disk drive , optional |
| Management | HDM OOB system (with dedicated management port) and H3C iFIST/FIST, LCD touchable smart model |
| Security |
Intelligent Front Security Bezel Chassis Intrusion Detection TPM2.0 Silicon Root of Trust 2FA for HDM |
| Power supply |
1+1 Redundancy power supply Titanium 850W/1600W Platinum 550W/800W/850W/1300W/1600W/2000W/2400W DC power supply Hot swappable Redundant Fans |
| Standards |
CE，UL , FCC，VCCI，EAC, etc. |
| Operating temperature |
5°C to 45°C (41°F to 113°F) The maximum operating temperature varies by server configuration. For more information, see the technical documentation for the device. |
| Dimensions (H × W × D) |
2U Height Without a security bezel: 87.5 x 445.4 x 748 mm (3.44 x 17.54 x 29.45 in) With a security bezel: 87.5 x 445.4 x 776 mm (3.44 x 17.54 x 30.55 in) |
