Front view of the system of Dell EMC PowerEdge R760
2023-04-20
We will provide you with the front view of the drive system of the Dell EMC PowerEdge R760 in different inches, in addition，we detail the ports, panels and jacks in table form. After reading this article，you will have a whole hearted understanding of the Dell EMC PowerEdge R760.
Figure 1. Front view of 24 x 2.5-inch drive system
Figure 2. Front view of 16 x 2.5-inch drive system

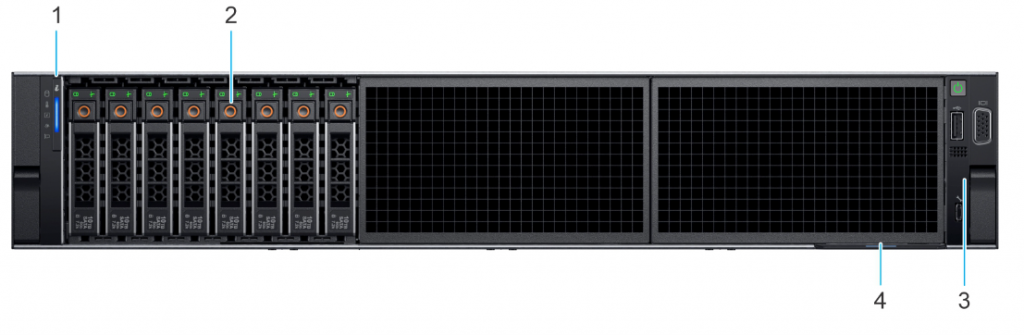

Figure 3. Front view of 8 x 2.5-inch drive system
Figure 4. Front view of 12 x 3.5-inch drive system
Table.Features available on the front of the system
| ITEM | PORTS, PANELS, AND SLOTS | ICON | DESCRIPTION |
| 1 | Left control panel | N/A | Contains the system health, system ID, and the status LED indicator. |
| 2 | Drive | N/A | Enables you to install drives that are supported on your system. |
| 3 | Right control panel | N/A | Contains the power button, VGA port, USB port, iDRAC Direct (Micro-AB USB) port, and the iDRAC Direct status LED. |
| 4 | Express Service Tag | N/A | The Express Service Tag is a slide-out label panel that contains system information such as Service Tag, NIC, MAC address, and so on. If you have opted for the secure default access to iDRAC, the Information tag will also contain the iDRAC secure default password. |
