Dell PowerSwitch S5248F-ON
The Dell PowerSwitch S5248F-ON belongs to the Dell S5200 Series and is designed to accommodate enterprise applications with its support for both Layer 2 and Layer 3 functionalities.
Description
This compact 1RU data center switch offers exceptio nal network performance, featuring 48 ports capable of operating at 25GbE speeds. It supports various features, including BGP, OSPF, and both IPv4 and IPv6 protocols.
| Feature | Description |
|---|---|
| Series | S5200 |
| Ports | 48 x 1/10/25Gb SFP28 |
| Accessory Ports | 4 x 100Gb QSFP28 & 2 x 100Gb QSFP28-DD |
| Power Supplies Installed | 2 x 750W Hot Swap Power Supply Units |
| AirFlow | Reverse Airflow - PSU to IO |
| Operating System | Open Network Installation Enviroment (ONIE) |
| Licenses Installed | No Dell OS Installed |
| Switch Fabric Capacity | 4Tb/s Full-Duplex |
| Management | Console Management |
| Chasis Type | 1U Rack Mountable |
| Rack Mounting Kit | Rack Rails Included |
| Additional Information | Compatible with 3rd Party OS |
| OS10 Options |
|
||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Power Cords | C13 to C14, | ||||||||||||||||||||
| Power Efficiency |
|
||||||||||||||||||||
| Redundant Power Supplies |
|
||||||||||||||||||||
| Optics, Cables and Cable Management | Please refer to Dell PowerSwitch Transceivers and Cables spec sheet for complete list of optics and cables. | ||||||||||||||||||||

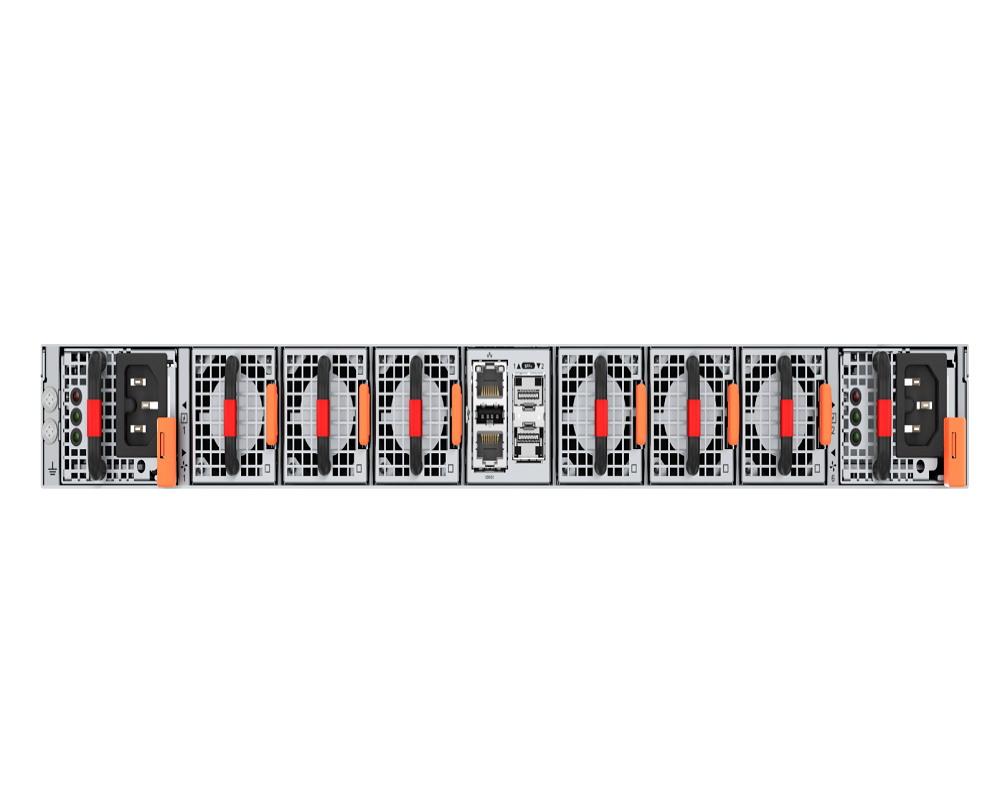

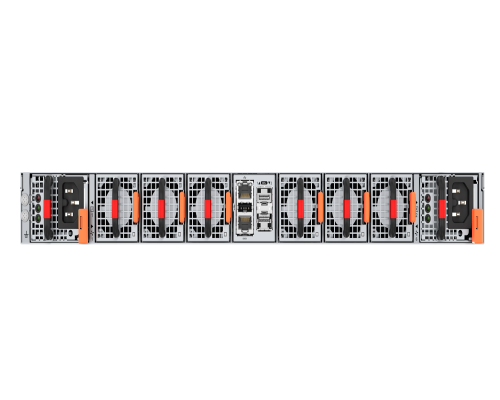

| Fans | Fan module, IO to PSU Airflow. Fan module, PSU to IO Airflow. |
||||||||||||||||||||
| Chassis Dimensions (H x W x D) | 41mm (1.6") x 209mm (8.2") x 490mm (15.75") (1RU Half-width) 44mm (1.7") x 434mm (17.1") x 460mm (18.1") (1RU) 87mm (3.4") x 442mm (17.4") x 511mm (20.1") (2RU) |
||||||||||||||||||||
| Scaling Performance |
|
