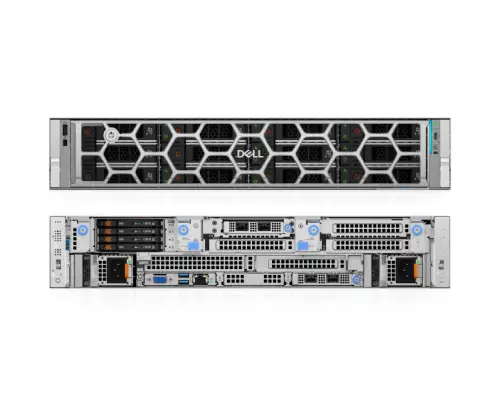

Dell PowerEdge R570 Rack Server
PowerEdge R570 is a 2U one-socket rack server engineered for high-performance computing with exceptional power efficiency and balanced performance, driving cost savings and boosting data center productivity.
Descriptions
Drive value and efficiencies in large datacenters
The Dell PowerEdge R570 is a powerful 2U, single-socket rack server designed to deliver high performance while maintaining exceptional energy efficiency. Its advanced design helps drive cost savings and improve data center productivity. With more cores in a single socket, the R570 delivers superior performance in a compact footprint, all while minimizing power consumption. This makes it perfect for workloads like virtualization, medium-density VMs, scale-out databases, VDI, and software-defined storage.
Purpose-built for enterprise and scalable infrastructures, the PowerEdge R570 seamlessly integrates into current environments. Designed for diverse performance and expandability needs, it is powered by an Intel® Xeon® 6 processor and offers advanced GPU support. This boosts computational capabilities and accelerates inferencing power, making it suitable for demanding business applications. The server is available in rear I/O hot aisle and front I/O cold aisle configurations. The front I/O cold aisle option enhances serviceability, reduces maintenance downtime, and improves overall system reliability. Additionally, Dell’s Smart Power and Cooling Technology will enable your IT and datacenter requirements with air-cooled solution.
Specifications
|
Feature |
Technical Specifications |
||
|
Processor |
• One Intel® Xeon® 6 E-core processor with up to 144 cores • One Intel® Xeon® 6 P-core processor with up to 86 cores with R1S option |
||
|
Memory |
• 16 DDR5 DIMM slots, speeds up to 6400 MT/s • One Intel® Xeon® 6 E-core processor - supports RDIMM 1 TB max • One Intel® Xeon® 6 P-core processor with up to 86 cores with R1S option - supports RDIMM 4 TB max • Supports registered ECC DDR5 DIMMs only Supports registered ECC DDR5 DIMMs only |
||
|
Storage controllers |
• Internal Controllers (RAID): PERC H365i DC-MHS, PERC H965i DC-MH, PERC H365i Adapter PERC H965i Adapter • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS), M.2 interposer with up to 2 x M.2 NVMe SSDs, USB • External Controllers: PERC H965e, HBA 465e |
||
|
Drive Bays |
Front bays: • Up to 12 x 3.5-inch SATA (HDD) RAID max 384 TB • Up to 8 x 2.5-inch NVMe RAID max 491.52 TB • Up to 8 x 2.5-inch NVMe max 491.52 TB • Up to 8 x 2.5-inch SATA max 30.72 TB • Up to 8 x 2.5-inch SATA/Universal max 491.52 TB • Up to 16 x 2.5-inch SATA RAID max 61.44 TB • Up to 24 x 2.5-inch SATA max 92.16 TB • Up to 8 x EDSFF E3.S (hot-aisle) Gen5 NVMe max 491.52 TB • Up to 8 x EDSFF E3.S (cold-aisle) Gen5 NVMe 491.52 TB • Up to 16 x EDSFF E3.S (cold-aisle) Gen5 NVMe max 983.04 TB • Up to 16 x EDSFF E3.S (hot-aisle) Gen5 NVMe max 983.04 TB • Up to 32 x EDSFF E3.S (hot-aisle) Gen5 NVMe max 1966.08 TB |
Rear bays: • Up to 4 x EDSFF E3.S Gen5 NVMe max 245.76 TB |
|
|
Power Supplies |
• 800 W Platinum/Titanium 100-240 VAC or 240 HVDC, hot swap redundant • 1100 W Platinum/Titanium 100-240 VAC or 240 HVDC, hot swap redundant • 1500 W Titanium 100-240 VAC or 240 HVDC, hot swap redundant • 1500 W 277 Vac and HVDC Titanium, hot swap redundant • 1400 W -48 VDC, hot swap redundant • 1800 W Titanium 100-240 VAC or 240 HVDC, hot swap redundant |
||
|
Cooling Options |
Air cooling |
||
|
Fans |
• Up to six hot plug fans |
||
|
Dimensions |
• Height – 86.8 mm (3.42 inches) • Width – 482.0 mm (18.98 inches) • Depth – 802.38 mm (31.59 inches) with bezel • Depth – 801.49 mm (31.55 inches) without bezel • Depth (Cold aisle/Front I/O Configuration) – 814.5 mm (32.06 inches) without bezel Note: Front I/O configuration will not have a bezel. |
||
|
Form Factor |
2U rack server |
||
|
Embedded Management |
• iDRAC • iDRAC Direct • iDRAC RESTful API with Redfish • RACADM CLI • iDRAC Service Module (iSM) |
||
|
Bezel |
Optional security bezel |
||
|
Security |
• Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secured Component Verification (Hardware integrity check) • Secure Erase |
• Silicon Root of Trust • System Lockdown • TPM 2.0 FIPS, CC-TCG certified • Chassis Intrusion Detection |
|
|
GPU Options |
Up to 3 x 400W DW; Up to 4 x 75W SW |
||
|
DPU Options |
NVIDIA BlueField-3 2 x 200 GbE B3220 |
||
|
Ports |
Front Ports • 1 x USB 2.0 Type-C (HOST/BMC Direct) • 1 x USB 2.0 Type-A (optional LCP - Secondary KVM) • 1 x Mini DisplayPort (optional LCP - Secondary KVM) • 1 x DB9 Serial (with front I/O configuration) • 1 x Dedicated BMC Ethernet port (with front I/O configuration) |
Rear Ports • 1 x Dedicated BMC Ethernet port • 2 x USB 3.1 Type-A • 1 x VGA |
|
|
|
Internal Port • 1 x USB 3.1 Type-A |
||
|
PCIe |
Up to six PCIe slots (x16 connector) • Slot 2: 1 x16 Gen5 Full Height, Half Length or 1 x16 Full Height, Full Length • Slot 3: 1 x16 Gen5 Full Height, Half Length • Slot 4: 1 x16 Gen5 Full Height, Half Length or 1 x16 Full Height, Full Length or 1 x16 OCP3.0 • Slot 6: 1 x4 Gen4 Boss (optional) • Slot 7: 1 x16 Gen5 Full Height, Half Length or 1 x16 Full Height, Full Length • Slot 9: 1 x16 Gen5 Full Height, Half Length • Slot 10: 1 x16 OCP3.0 • Slot 31: 1 x16 Gen5 Full Height, Half Length • Slot 34: 1 x16 OCP3.0 or 1 x4 Gen4 Boss (optional) • Slot 36: 1 x16 Gen5 Full Height, Half Length • Slot 38: 1 x16 OCP3.0 |
||
|
Gen5 PCIe slots |
4 |
||
|
OCP Network options |
• Up to two OCP NIC card 3.0: Two slots on the front or two slots on the rear (optional) |
||
|
Embedded NIC |
1 Gb dedicated BMC Ethernet port |
||
|
Operating System and Hypervisors |
• Canonical Ubuntu Server LTS • Microsoft Windows Server with Hyper-V • RedHat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi |
||
These example configurations demonstrate the flexibility of the R570 platform across different use cases:
| Use Case | CPU & Memory | Storage / I/O | Description |
| R570 Virtualisation Host | 1× Intel Xeon 6 P-core (36 cores), 256 GB DDR5 (8× 32 GB RDIMM, 6400 MT/s) | 2× 960 GB NVMe SSD RAID 1 (OS) + 8× 1.92 TB NVMe SSD (VM datastore) | Balanced single socket 2U platform for VMware vSphere, Hyper-V and Proxmox VM clusters |
| R570 VDI & Remote Desktop | 1× Intel Xeon 6 P-core (48 cores), 512 GB DDR5 (16× 32 GB RDIMM, 6400 MT/s) | 2× 480 GB SATA SSD RAID 1 (OS) + 8× 3.84 TB NVMe SSD (user profiles) | High memory single socket for Citrix, VMware Horizon and Windows 365 virtual desktop workloads |
| R570 Software Defined Storage | 1× Intel Xeon 6 E-core (144 cores), 128 GB DDR5 (8× 16 GB RDIMM, 6400 MT/s) | 2× 480 GB SATA SSD RAID 1 (OS) + 12× 18 TB 3.5 inch SATA HDD (data) | High capacity 2U storage node for vSAN, Ceph, TrueNAS and software defined storage platforms |
| R570 Scale-Out Database | 1× Intel Xeon 6 P-core (36 cores), 256 GB DDR5 (8× 32 GB RDIMM, 6400 MT/s) | 2× 960 GB NVMe SSD RAID 1 (OS) + 16× EDSFF E3.S Gen5 NVMe (data) | Low latency Gen5 NVMe for SQL Server, PostgreSQL, MongoDB and distributed database workloads |
