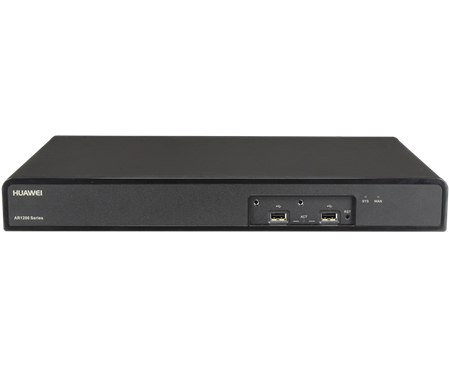

AR1220E Huawei Enterprise Class Router
AR1220E is one of Huawei's netengine routers. Based on Huawei's proprietary multi-function routing platform and AC power module, it can provide an effective network solution for small and medium-sized enterprises.
Features
Huawei's proprietary multi-function routing platform ensures network security.
The built-in AC power module ensures the stability of the product.
2 GE combined interfaces and 8 gigabit interfaces can be used for networks with different bandwidths.
YouTube
Parameters
|
Brand |
Huawei |
|
Model |
AR1220E |
|
WAN speed with services |
400 Mbit/s |
|
Firewall Performance (large packet) |
1,800 Mbit/s |
|
Device Switching Capacity |
8 Gbit/s |
|
Slot Switching Bandwidth |
SIC & WSIC slots: 2 Gbit/s |
|
Number of Recommended Users |
100 |
|
Fixed WAN Ports |
2 x GE Combo |
|
Fixed LAN Ports |
8 x GE (can be configured as WAN interfaces) |
|
SIC Slots |
2 |
|
WSIC Slots (default/max) |
0/1 |
|
USB 2.0 Ports |
2 |
|
Mini-USB Ports |
1 |
|
Serial Auxiliary/Console Port |
1 |
|
Memory |
1 GB |
|
Flash |
512 MB |
|
Max. Power |
60W |
|
AC Power |
100V to 240V |
|
Frequency |
50 Hz/60 Hz |
|
Dimensions (H x W x D) |
44.5 mm x 390 mm x 220 mm |
|
Weight |
12.45 kg |
|
Ambient Temperature |
0°C to 45°C |
|
Relative Humidity |
5% to 95% (non-condensing) |
