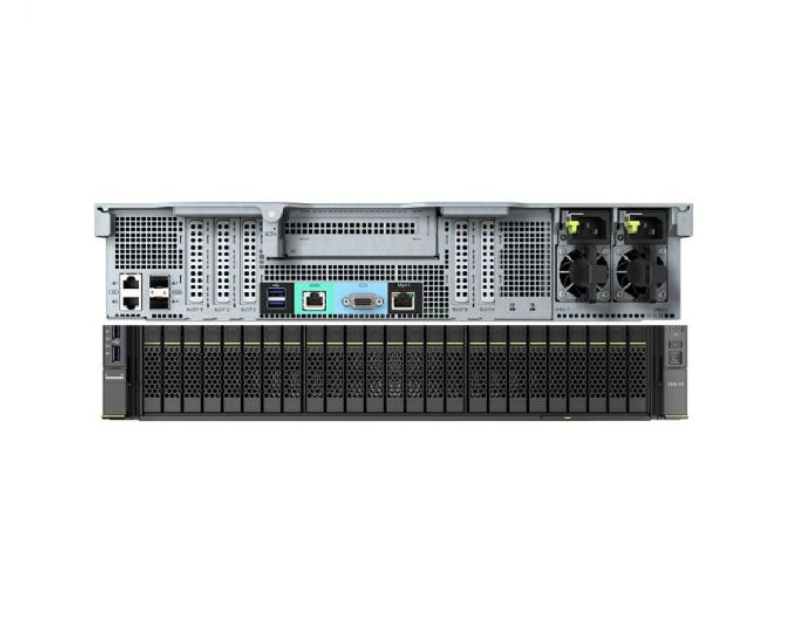

HUAWEI FusionServer Pro 2488H V6 24SFF 2U Rack Server 2488HV6
FusionServer 2488H V6 is the lastest 2U, 4-socket (4S) rack server, ideal for computing-intensive scenarios such as cloud computing, virtualization, high-performance computing (HPC), database, and SAP HANA.
Features
FusionServer 2488H V6 is the lastest 2U, 4-socket (4S) rack server, ideal for computing-intensive scenarios such as cloud computing, virtualization, high-performance computing (HPC), database, and SAP HANA.
In virtualization scenarios, the OPEX of one FusionServer 2488H V6 is lower than that of two 2U, 2S rack servers.
The 2488H V6 houses four 3rd Gen Intel® Xeon® Scalable processors in a 2U space, and supports 48 DDR4 DIMMs, 11 PCIe slots, and up to 25 x 2.5'' drives for local storage.
It incorporates patented technologies, such as DEMT and FDM, and can be configured with FusionDirector software for entire-lifecycle management, helping drive down OPEX and improve ROI.
FusionServer 2488H V6 Specification
|
Model
|
FusionServer 2488H V6
|
|
Form Factor
|
2U Rack Server
|
|
Maxim Processor
|
2 or 4 x 3rd Gen Intel® Xeon® Scalable processors (5300/6300/8300 series), TDP up to 250 W
|
|
RAM
|
48 DDR4 DIMM slots, up to 3200 MT/s; up to 24 Intel® Optane™ PMem modules (200 series), 2666 MT/s
|
|
Drive bays
|
Supports hot-pluggable drives with the following configuration options:
• 8 x 2.5'' front SAS/SATA drives • 24 x 2.5'' front SAS/SATA drives • 25 x 2.5'' front SAS/SATA drives • 4 x 2.5'' front SAS/SATA drives and 8 x 2.5'' NVMe SSDs • 4 x 2.5'' front SAS/SATA drives and 16 x 2.5'' NVMe SSDs Flash storage: • 2 M.2 SSDs |
|
Storage controllers
|
RAID 0, 1, 1E, 5, 50, 6, or 60; optional supercapacitor for cache power-off protection; RAID-level migration, drive roaming,
self-diagnosis, and web-based remote configuration |
|
I/O & Ports
|
LOM: 2 x 10GE + 2 x GE ports
|
|
Power supplies
|
2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options:
• 3000 W AC Titanium PSUs 2500 W (input: 200 V to 220 V AC) 2900 W (input: 220 V to 230 V AC) 3000 W (input: 230 V to 240 V AC) • 2000 W AC Platinum PSUs 1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC) 2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC) • 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC) • 1500 W HVDC PSUs (input: 260 V to 400 V AC) • 1200 W DC PSUs (input: -38.4 V to -72 V DC) |
|
Height X Width X Depth
|
Chassis: 86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10 in.)
|
|
Rail
|
Optional rail
|
|
PCIe Expansion
|
Up to 11 PCIe 3.0 slots, including one dedicated PCIe slot for the OCP 3.0 NIC
|
