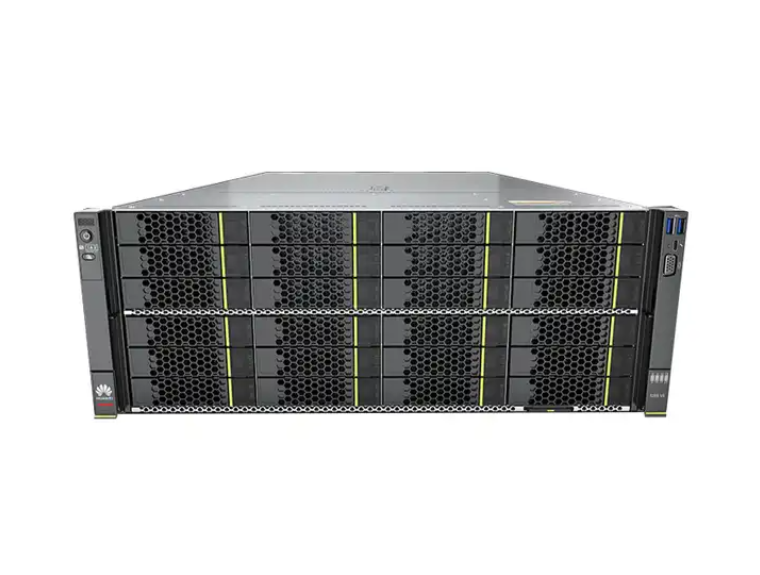

FusionServer 5288V6 Rack Server

    HUAWEI FusionServer 5288V6 Rack Server

    Huawei FusionServer 5288 V6 is a 4U 2-socket rack server that meets service requirements such as hot, warm, and cold data tiered deployment and historical data archiving.



    With the efficient design, Huawei FusionServer 5288 V6 ensures excellent computing performanceand provides flexible and ultra-large local storage expansion capabilities, reducing data storage costs.

    The 5288 V6 can be configured with two Intel Xeon scalable processor, 32 DDR4 DIMMs, and 44 3.5-inch + 4 NVMe SSDs in a 4 U space. Integrates patented technologies such as DEMT intelligent power management and FDM intelligent fault management, and can be configured with FusionDirector full-lifecycle management software, effectively reducing OPEX and improving ROI.



    5288V6 Server Specifications


    Server Type 4U rack server
    Processors One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W
    Chipset Intel C621A
    Memory 32 DDR4 DIMMss, up to 3,200 MT/s; 16 Optane™ PMem 200 series, up to 3,200 MT/s.
    Local Storage Supports various drive configurations and hot swappable:
    • 36-44 3.5-inch SAS/SATA drives + 4 NVMe SSDs
    • 24 x 3.5-inch front SAS/SATA drives
    • 4 x 3.5-inch embedded SAS/SATA drives
    • 16 x 3.5-inch SAS/SATA drives + 4 x 2.5-inch rear SAS/SATA/NVMe SSDs
    Supports flash storage:
    • Dual M.2 SSDs
    RAID Support Supports RAID 0, 1, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration, drive
    roaming, self-diagnosis, and remote web-based configuration.
    PCIe Expansion Provides a maximum of eleven PCIe 4.0 slots, including one PCIe slot dedicated for RAID card, two FlexIO card slots dedicated for
    OCP 3.0, and eight PCIe 4.0 slots for standard PCIe cards.
    Fan Modules Four hot-swappable fan modules in N+1 redundancy mode
    Power Supply Two hot-swappable PSUs in 1+1 redundancy mode. Supported options include:
    • 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC)
    • 1500 W AC Platinum PSUs
    1000 W (input: 100 V to 127 V AC)
    1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC)
    • 2000 W AC Platinum PSUs
    1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC)
    2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC)
    Operating Systems Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian,
    Security Features Power-on password, administrator password, TPM 2.0, security panel, secure boot, and cover opening detection.
    Operating Temperature 5°C to 45°C (41°F to 113°F) (ASHRAE Classes A1 to A3 compliant)
    Certifications CE, UL, CCC, FCC, VCCI, RoHS, etc
    Installation Kit L-shaped guide rails, adjustable guide rails, and holding rails.
    Dimensions (H x W x D) 175 mm x 447 mm x 790 mm (6.89 in. x 17.60 in. x 31.10in.)

    Huawei FusionServer 5288 V6Huawei FusionServer 5288 V6
